Daytona's external ignition conversion kit is made of high-quality components with easy plug-in installation.
1 | Select A Make
2 | Select A Model
3 | Select A Year
Daytona Internal to External Ignition Conversion Kit 3020-243
ECU & CDI | SKU #3020-243 | MPN #3020
$549.95
- New Part
Average free shipping time to your home 2-4 daysContact us for a question. Phone: (304) 699-7572
Availability: IN STOCK
- WI1
- NV2
- NC1
- ID1
- TX1
Specifications
| Condition | New |
| SKU# | 3020-243 |
| MPN# | 3020 |
| Part | ECU & CDI |
| Electrical Resistance | 3 Ohms |
| Ignition Fire Method | SingleDual |
| Material | Billet Aluminum |
| Base Color | Black |
| Surface Finish | Anodized |
| Features | Programmable |
Vehicle Compatibility
This part fits an additional 201 vehicles.Please use the search box above to find your vehicle.
| Year | Make | Model | Submodel |
|---|---|---|---|
| Harley Davidson | Softail Custom | Softail Custom FXSTC |
Description
Additional Note
NOTE: Exempt per CARB Executive Order (E.O.) #D-641-1.
NOTE: Sportster 1200S with Dual Plug Heads:
- You will have to remove the original equipment MAP sensor.
- You will also require a timing rotor (P/N 18004) and VOES switch (P/N 18010).
- The OE coil has low resistance primary windings that are not compatible with our Ignition and must be replaced with an aftermarket four tower coil that has 3-ohm primary resistance.
Features
External Ignition Conversion Kit:
- Made in the U.S.A.
- Allows the use of an external ignition, which helps prevent heat-related ignition failures by replacing heat-sensitive internal nose-cone style ignitions
Info About the1007 EX External Ignition Module Included In This Kit:
- Selectable single or dual fire mode
- Coil outputs protected against short circuits
- Selectable multi-spark mode for quick starting and smooth cruise
- Uses the tachometer wire for the PC-link and comes with a connector
- Wide timing advance adjustment range accommodates stock to highly modified engines
- Optional USB interface and software for programming custom advanced curve (Sold Separately)
- Requires coils with a minimum of 3 ohms resistance and low-resistance spiral-core-type plug wires
- The unit has four rotary switches for timing adjustments, single/dual ignition mode, and a digitally set RPM limit (100 RPM steps)

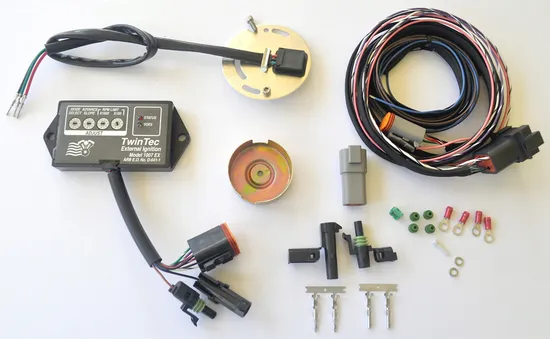

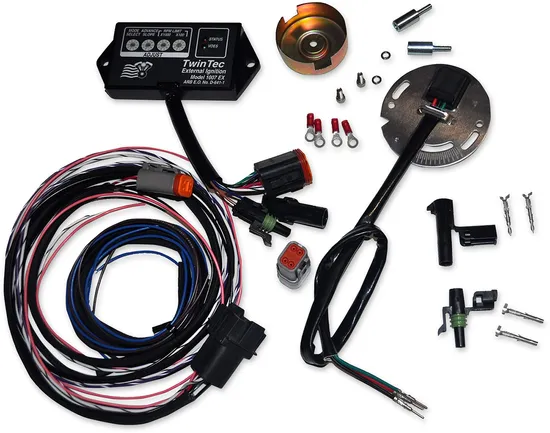

Items Included:
- Adapter Harness
- 1007-EX Ignition Module
- Mounting Stand-Offs with Screws
- Packard Weather Pack Connectors
- Parts Bag with a 4-Pin Male/Female Connector/Pins/Sockets
- OEM- style cam position sensor with highly sensitive Hall effect sensor and rotor cup
- Detailed Instructions
