Two advance curve families with adjustable advance slope accommodate stock to highly modified engines. Digitally set RPM limit in 100 rpm steps. Selectable single- or dual-fire mode. Selectable multi-spark mode for quick starting and smooth cruise. Coil outputs protected against short circuits.
1 | Select A Make
2 | Select A Model
3 | Select A Year

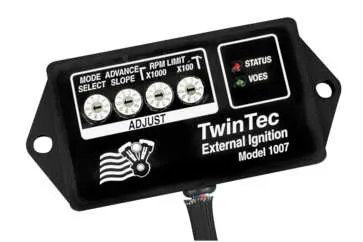

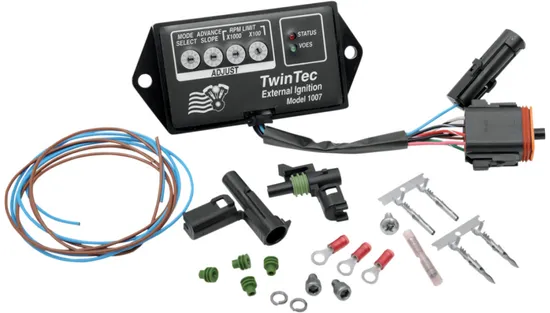

Daytona 1007 EX External Ignition Module 8 Pin Plug In Kit 1007-EX-243
ECU & CDI | SKU #1007-EX-243 | MPN #1007-EX
$354.95
- New Part
Average free shipping time to your home 2-4 daysContact us for a question. Phone: (304) 699-7572
Availability: IN STOCK
- WI2
- NV2
- TX1
Specifications
| Condition | New |
| SKU# | 1007-EX-243 |
| MPN# | 1007-EX |
| Part | ECU & CDI |
| Connector Type | Deutsch |
| Physical Connection | Plug-In |
| Connector Pin Count | 8 |
| Electrical Resistance | 3 Ohms |
| Ignition Fire Method | SingleDual |
| Material | Billet Aluminum |
| Base Color | Black |
| Surface Finish | Anodized |
| Features | Programmable |
Vehicle Compatibility
This part fits an additional 69 vehicles.Please use the search box above to find your vehicle.
| Year | Make | Model | Submodel |
|---|---|---|---|
| Harley Davidson | Fat Boy | Fat Boy FLSTF |
Description
Additional Note
NOTE: Not for fuel-injected models.
NOTE: Pictures are for reference purposes.
NOTE: Exempt per CARB Executive Order (E.O.) #D-641-1.
NOTE: Intended for electric start applications only and are not compatible with kick start engines.
Features
1007 EX External Ignition Module:
- Made in the U.S.A.
- Easy plug-in installation
- Selectable single or dual fire mode
- Coil outputs protected against short circuits
- Selectable multi-spark mode for quick starting and smooth cruise
- Uses the tachometer wire for the PC-link and comes with a connector
- Wide timing advance adjustment range accommodates stock to highly modified engines
- Optional USB interface and software for programming custom advanced curve (Sold Separately)
- Requires coils with a minimum of 3 ohms resistance and low-resistance spiral-core-type plug wires
- The unit has four rotary switches for timing adjustments, single/dual ignition mode, and a digitally set RPM limit (100 RPM steps)
