Daytona's internal ignition module kits are made from high-quality components and the coil outputs protect against short circuits.

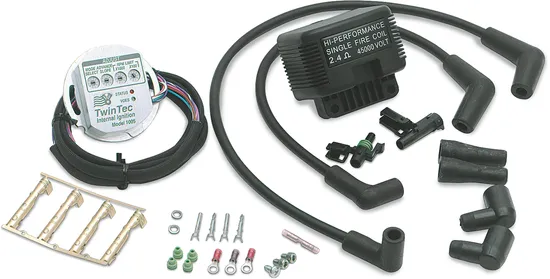

Daytona 1005 EX Internal Ignition Module Kit 3005-EX-243
$522.32
- New Part
Availability: IN STOCK
- WI1
- NY3
- NV1
- NC1
Specifications
Condition | New |
SKU# | 3005-EX-243 |
MPN# | 3005-EX |
Part | ECU & CDI |
Electrical Resistance | 3 Ohms |
Ignition Fire Method | Single, Dual |
Material | Billet Aluminum |
Base Color | Silver |
Surface Finish | Raw |
Features | Programmable |
Vehicle Compatibility
This part fits an additional 359 vehicles.Year | Make | Model | Submodel |
---|---|---|---|
Harley-Davidson | Softail | Softail Custom FXSTC | |
Harley-Davidson | Fatboy | Fatboy FLSTF | |
Harley-Davidson | Heritage Softail | Heritage Softail Classic FLSTC | |
Harley-Davidson | Softail Springer | Softail Springer FXSTS | |
Harley-Davidson | Night Train | Night Train FXSTB | |
Harley-Davidson | Heritage Springer | Heritage Springer FLSTS | |
Harley-Davidson | Dyna | Dyna Low Rider FXDL | |
Harley-Davidson | Dyna | Dyna Super Glide FXD | |
Harley-Davidson | Dyna | Dyna Wide Glide FXDWG | |
Harley-Davidson | Dyna | Dyna Convertible FXDS-Conv | |
Harley-Davidson | Electra Glide | Electra Glide Classic FLHTC | |
Harley-Davidson | Road King | Road King FLHR | |
Harley-Davidson | Road Glide | Road Glide FLTR | |
Harley-Davidson | Electra Glide | Electra Glide Ultra Classic FLHTCU | |
Harley-Davidson | Bad Boy | Bad Boy FXSTSB | |
Harley-Davidson | Sportster 1200 | Sportster 1200 XLH1200 | |
Harley-Davidson | Sportster 883 | Sportster 883 Hugger XLH883 | |
Harley-Davidson | Sportster 883 | Sportster 883 XLH883 | |
Harley-Davidson | Heritage Softail | Heritage Softail Special FLSTN | |
Harley-Davidson | Tour Glide | Tour Glide Ultra Classic FLTCU | |
Harley-Davidson | Sportster 883 | Sportster 883 Deluxe XLH883 | |
Harley-Davidson | Dyna | Dyna Low Rider Custom FXLR | |
Harley-Davidson | Super Glide | Super Glide FXR | |
Harley-Davidson | Softail | Softail FXST | |
Harley-Davidson | Tour Glide | Tour Glide Classic FLTC | |
Harley-Davidson | Dyna | Dyna Low Rider Convertible FXRS-Conv | |
Harley-Davidson | Electra Glide | Electra Glide Sport FLHS | |
Harley-Davidson | Heritage Softail | Heritage Softail Nostalgia FLSTN | |
Harley-Davidson | Dyna Glide | Dyna Glide Custom FXDC | |
Harley-Davidson | Sport Glide | Sport Glide FXRT | |
Harley-Davidson | Low Rider | Low Rider Convertible FXRS-Conv | |
Harley-Davidson | Low Rider | Low Rider FXRS | |
Harley-Davidson | Low Rider | Low Rider Custom FXLR | |
Harley-Davidson | Low Rider | Low Rider Sport FXRS-SP | |
Harley-Davidson | Heritage Softail | Heritage Softail FLST | |
Harley-Davidson | Electra Glide | Electra Glide FLHT | |
Harley-Davidson | Low Rider | Low Rider Chrome FXRC | |
Harley-Davidson | Sportster 1100 | Sportster 1100 XLH1100 | |
Harley-Davidson | Sport Glide | Sport Glide Grand Touring FXRD | |
Harley-Davidson | Super Glide | Super Glide FatBob FXEF | |
Harley-Davidson | Low Rider | Low Rider FXSB | |
Harley-Davidson | Low Glide | Low Glide FXRS | |
Harley-Davidson | Low Glide | Low Glide Custom FXRC | |
Harley-Davidson | Sportster 1000 | Sportster 1000 XLH | |
Harley-Davidson | Roadster | Roadster XLS | |
Harley-Davidson | Super Glide | Super Glide Electric Start FXE | |
Harley-Davidson | Electra Glide | Electra Glide FLHX | |
Harley-Davidson | Electra Glide | Electra Glide FLH | |
Harley-Davidson | Wide Glide | Wide Glide FXWG | |
Harley-Davidson | Disc Glide | Disc Glide FXRDG | |
Harley-Davidson | Tour Glide | Tour Glide FLT | |
Harley-Davidson | Disc Glide | Disc Glide FXDG | |
Harley-Davidson | Super Glide II | Super Glide II FXR | |
Harley-Davidson | Low Rider | Low Rider FXS | |
Harley-Davidson | Sturgis | Sturgis FXB | |
Harley-Davidson | Electra Glide | Electra Glide Heritage FLH | |
Harley-Davidson | Fatbob | Fatbob FXEF | |
Harley-Davidson | Sportster 1000 | Sportster 1000 XLCH | |
Harley-Davidson | Super Glide | Super Glide FX | |
Harley-Davidson | Electra Glide | Electra Glide Police FLH | |
Harley-Davidson | Sportster 1000 | Sportster 1000 Cafe Racer XLCR | |
Harley-Davidson | Sportster 1000 | Sportster 1000 Touring XLT | |
Harley-Davidson | Electra Glide | Electra Glide FL | |
Harley-Davidson | Sportster 883 | Sportster 883 XLCH | |
Harley-Davidson | Sportster | Sportster XLH |
Description
Features
3005-EX Internal Ignition Module:
- Made in the U.S.A.
- Selectable single or dual fire mode
- Digitally set RPM limit (100 RPM steps)
- Four rotary switches for timing adjustments
- Coil outputs protected against short circuits
- Selectable multi-spark mode for quick starting and smooth cruising
- Use the tachometer wire for the PC link and comes with a connector
- Two diagnostic LEDs indicate the status and the state of the vacuum switch (VOES)
- Wide timing advance adjustment range accommodates stock to highly modified engines
- Optional USB interface and software available for programming custom curves (Sold Separately)
- Require coils with a minimum of 3 ohms resistance and low-resistance spiral-core-type plug wires
- The status LED is also used for static timing, as it will flash when the engine reaches top dead center (TDC)
- When programmed for kick start mode, the unit has zero cranking delay and a 30-second timeout before coil current shutoff
Items Included:
- 1005-EX Ignition Module
- Single-Fire Coil (P/N 2005)
- Spark Plug Wires (8.5mm) (P/N 3003)
- Instructions
Additional Information
NOTE: Not for fuel-injected models.
NOTE: Exempt per CARB Executive Order (E.O.) #D-641-1.
NOTE: The Model 1005-EX must be operated with the original equipment Harley Davidson™ timing rotor (P/N 32402-83).
NOTE: Kick Start Capability: Primarily intended for electric-start applications. However, Rev 7.0 units can be programmed for kick start mode by using our PC Link Evo software and optional USB interface.
NOTE: Sportster® 1200S with Dual Plug Heads: OEM coil has low resistance primary windings that are not compatible with the ignition. You must replace the OEM coil with an aftermarket four-tower coil that has 3-ohm primary resistance. You will have to remove the original equipment MAP sensor. You will also require a timing rotor (P/N 18004) and VOES switch (P/N 18010).
NOTE: Switch selectable single or dual fire mode allows you to initially install the unit and run it in dual fire mode with the stock coil. You can then easily upgrade to single fire by adding an appropriate coil (P/N 2005 included in this kit). If you have a tach, it will continue to operate properly (some competitive systems require that you purchase a tach adapter).
